Water-Based Coating vs. Solvent-Based Coating VOC Comparison: Limits, Testing, and Emission Reduction Logic

Kexin New Materials (kexinMaterials) adopts a emission-reduction approach of "front-loading compliance red lines": at the formulation design stage, the limits of GB 30981/24409 are treated as hard boundaries rather than addressed as after-the-fact remediation, helping production lines pass environmental reviews and avoid production restrictions. For specific VOC comparisons, refer to Water-based Coating vs. Oil-based Coating Selection.

VIII. VOC Testing and Acceptance Practices

• Method selection: For industrial protective coatings, use GB/T 23986 (GC method) or GB/T 23985 (difference method); for wood coatings, use the method referenced in GB/T 23999. Specify the method in the agreement.
• Sample condition: VOC is determined in the "as-supplied state" or "application state (after thinning)"; the two differ and must be agreed upon. For high-solid products, it is fairer to label VOC in the "application state".
• Report verification: Request third-party reports with CMA/CNAS accreditation, and check the testing basis, sample condition, and limit compliance judgment.
• Exemption check: Confirm whether the solvents used are on the standard exemption list to avoid inconsistent interpretations.
• Dynamic compliance: Track regulatory updates (e.g., GB 30981 replacing the old version) to ensure continuous compliance.

IX. Decision Framework from VOC to Selection

1. First define regulatory boundaries: identify the corresponding standard based on industry (industrial/automotive/wood/architectural) and region (national standard/EU/CARB).
2. Then define operating-condition performance: corrosion grade, weather resistance, mechanical load determine the resin system (see Water-based Industrial Coating Formulation).
3. Compare VOC: compare performance under the premise of compliance, rather than sacrificing performance for VOC.
4. Application emissions: product VOC × overspray rate = actual emissions; choosing high transfer-efficiency application is more critical.

For engineering selection, it is recommended to include both the VOC report and the performance report as "dual reports" in procurement acceptance—neither using environmental protection as an excuse to lower quality, nor using performance as an excuse to exceed limits.

X. Engineering Details of VOC Accounting

How exactly the VOC "number" is calculated is the root of many technical disputes. According to GB/T 23986-2009 (gas chromatography), VOC = (sample mass − mass of non-volatile matter after water removal − mass of exempt substances) / sample volume, in g/L; GB/T 23985-2009 (difference method) deducts exempt substances from volatile matter, which is more suitable for high-solid products. Key variables: ① sample condition (as-supplied or application state after thinning)—high-solid products change significantly after thinning and must be agreed; ② exemption list (specific high-boiling-point, low-reactivity solvents may be exempt, but lists differ by country); ③ boiling point criterion (under GB, initial boiling point ≤ 250°C is counted; EU/US differ). Therefore, the first principle in comparing VOC is "align the testing method"; it only makes sense to state "determined per GB/T 23986" in the agreement.

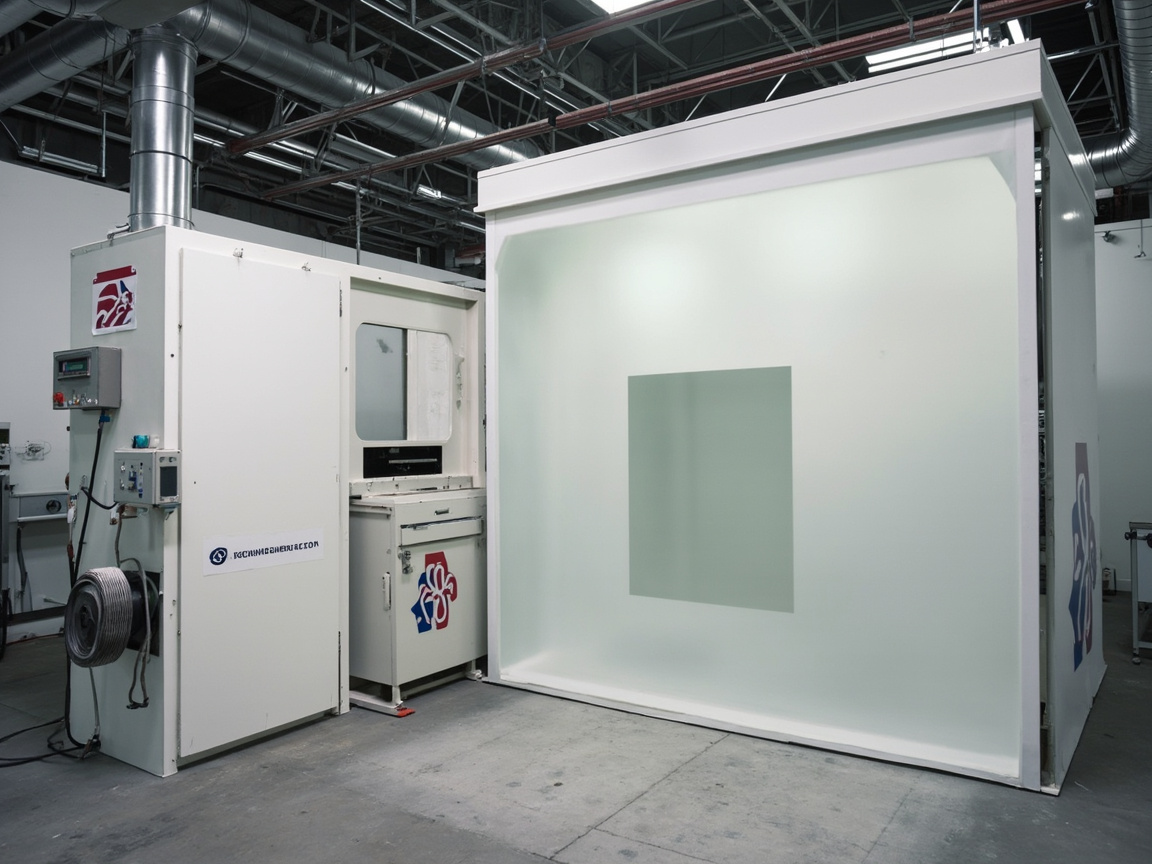

Actual emissions at application = product VOC × overspray rate. Even if product VOC is not low, using HVLP/electrostatic spraying to raise transfer efficiency from 40% to 70% can cut the actual VOC discharged per unit area by nearly half. Thus "reducing VOC" is not only a formulation matter but also an application matter. Companies often overlook this, focusing only on product g/L while allowing overspray waste.

XI. Regulatory Evolution and Industry Impact

VOC limits show a continuous tightening trend. GB 30981-2020 replaces GB 30981-2014, covering industrial protective coatings and setting limits by water-based/solvent-based/solvent-free types; GB 24409-2020 replaces GB 24409-2009, tightening vehicle coating limits. The EU 2004/42/EC and US CARB/SACQMD Rule 1113 have long imposed strict controls. The direct consequence of tightening: low-solid solvent-based coatings are phased out, and high-solid/solvent-free/water-based become mainstream. Companies still mainly using low-solid oil-based face production restriction and retrofit risks.

Impact on supply chain: resin manufacturers must provide low-VOC resins (high-solid, low-MFFT emulsions, self-crosslinking); coating manufacturers must recalculate formulation VOC and prepare third-party reports; end users must include VOC reports as a mandatory inspection item in procurement. Kexin New Materials (kexinMaterials) treats GB 30981/24409 as hard boundaries at the formulation design stage rather than remediating afterward, helping production lines pass environmental reviews and avoid restrictions. This is the inevitable choice of turning VOC compliance from a "cost item" into an "access item".

XII. Real Magnitude Comparison of Water-based VOC vs. Oil-based VOC

Breaking the earlier comparison table into finer magnitudes: water-based wood paint (GB/T 23999) commonly tens to about 300 g/L; water-based industrial protective coating (GB 30981) tens to about 300 g/L; water-based epoxy (floor/anti-rust) tens to about 250 g/L; low-solid solvent-based 500–800+ g/L; high-solid solvent-based 300–500 g/L; solvent-free ≤ 60 g/L. Note that "water-based" also varies greatly internally: high-solid water-based and solvent-free oil-based VOC may be close, so "water-based is definitely more eco-friendly" needs specific comparison against high-end oil-based and cannot be labeled blindly. Core of selection: compare performance under compliance, rather than sacrificing performance for VOC or breaking compliance red lines for performance.

XIII. Practical Checklist for Testing and Acceptance

Corporate VOC control checklist: ① clarify industry and regional standards (GB 30981/24409/EU/CARB); ② agree on testing method (GB/T 23986 or 23985) and sample condition (as-supplied/application); ③ request CMA/CNAS third-party reports, verify testing basis and limit judgment; ④ check exempt solvent list to avoid inconsistent interpretations; ⑤ track regulatory updates (e.g., GB 30981 replacing old version); ⑥ use high transfer-efficiency equipment at application to reduce actual emissions; ⑦ include VOC report and performance report as "dual reports" in procurement acceptance. Kexin New Materials (kexinMaterials) recommends "front-loaded compliance red lines + dual-report acceptance"—neither using environmental protection as an excuse to lower quality, nor using performance as an excuse to exceed limits. For overall trade-off between performance and compliance, see Water-based Coating vs. Oil-based Coating Selection.

XIV. VOC Testing Methodology and Report Verification

How exactly the number of volatile organic compounds is calculated is the most common dispute point in technical agreements. According to the national standard GB/T 23986 gas chromatography method, volatile organic compounds equal the sample mass minus the mass of non-volatile matter after water removal minus the mass of exempt substances, divided by the sample volume, in grams per liter; the national standard GB/T 23985 difference method deducts exempt substances from volatile matter and is more suitable for high-solid systems. There are three key variables: first, sample condition—whether as-supplied or after thinning in application state; high-solid products change greatly after thinning and must be agreed in advance; second, the exemption list—specific high-boiling-point, low-reactivity solvents may be exempt, but lists differ by country; third, the boiling point criterion—national standards usually count organic compounds with initial boiling point not exceeding 250°C. Therefore, the first principle in comparing volatile organic compounds is to align the testing method; stating in the agreement that determination is per GB/T 23986 is what makes it meaningful.

Actual emissions at application equal product volatile organic compounds multiplied by the overspray rate. Even if the product number is not low, using high-performance transfer-efficiency spraying or electrostatic spraying to raise transfer efficiency from 40% to 70% can cut the actual volatile organic compounds discharged per unit area by nearly half. So reducing volatile organic compounds is not only a formulation matter but also an application matter. Companies often overlook this, fixating on product grams per liter while allowing overspray waste, resulting in no reduction in total emissions.

XV. Horizontal Comparison of VOC Limits across Industries

Different industries apply different limit standards and must be queried accordingly. Industrial protective coatings apply GB 30981-2020, setting upper limits by water-based, solvent-based, and solvent-free types; vehicle coatings apply GB 24409-2020, covering automotive OEM, refinish, and parts; water-based wood coatings for interior decoration apply GB/T 23999-2009; the architectural field has corresponding standards. The EU has Directive 2004/42/EC, and California has CARB and SCAQMD Rule 1113. Regulations overall tighten, low-solid solvent-based are gradually phased out, and high-solid, solvent-free, and water-based become mainstream. Companies still mainly using low-solid oil-based face production restriction and retrofit risks. Clarifying industry and regional standards is the first prerequisite for compliance.

XVI. Formulation Balance of Low-VOC Water-based Systems

Water-based systems must balance low volatile organic compounds with good film formation. More coalescing agent helps film formation but raises the number; none at all causes cracking and cratering. Engineering uses low minimum-film-formation-temperature emulsions, introduces self-crosslinking groups, and uses high-boiling-point low-VOC auxiliaries to reduce reliance on external additives. High-solid systems use less solvent and more film-forming substance, reducing the number at the source. Water-borne replaces solvent with water, driving the number very low, but water-borne varnish is far harder than basecoat; currently mostly in R&D and high-end pilots. Note that limits are a bottom line, not a ceiling; compliance is only an entry ticket, and what truly determines customer satisfaction is the hardness, chemical resistance, and gloss retention from crosslink density. Therefore, in formulation and selection, compliance and performance should be reviewed as two parallel hard indicators.

XVII. Corporate Implementation Checklist for VOC Compliance

Turn the volatile organic compounds (VOC) compliance into an actionable checklist for the enterprise. First, clarify your own industry and regional standards: for industrial protective coatings, refer to GB 30981-2020; for vehicles, refer to GB 24409-2020; for wood coatings, refer to GB/T 23999-2009. Second, agree on testing methods, uniformly following GB/T 23986 or GB/T 23985, and specify whether the sample is in the as-manufactured state or the as-applied state. Third, request qualified third-party test reports from suppliers, and verify the testing basis and limit judgments. Fourth, check the exempt solvent list to avoid misjudgment caused by inconsistent criteria. Fifth, track regulatory updates and adjust formulations promptly after standards are replaced. Sixth, use high-transfer-efficiency equipment at the application end to reduce actual emissions. Seventh, include the VOC report alongside the performance report in procurement acceptance. Eighth, establish an internal limit ledger and monitor by product line. By institutionalizing these eight points, the enterprise shifts from passively responding to inspections to proactively ensuring compliance, and also avoids the two extremes of sacrificing performance for compliance or breaching the red line for performance. The VOC limit is the bottom line; performance compliance is what customers actually pay for.

18. The Economic Account of VOC Treatment Facilities and Source Substitution in Painting Workshops

Reducing VOC at the product end and end-of-pipe treatment are two sides of the same coin; decision-making must account for the overall picture. Solvent-based painting workshops that need to meet emission requirements typically require supporting waste gas collection and treatment facilities: activated carbon adsorption is suitable for low-concentration intermittent conditions, but after the carbon bed is saturated, replacement and hazardous waste disposal are ongoing costs; zeolite rotor concentration plus regenerative thermal oxidation (RTO) is suitable for large-airflow low-concentration continuous production lines, with high treatment efficiency but considerable one-time investment and operating energy consumption. The economic significance of water-based conversion lies precisely here: when product VOC drops to the water-based magnitude, the spray booth exhaust concentration drops significantly, and some conditions can simplify the treatment facility level and reduce operating costs—source substitution directly cuts end-of-pipe investment. Conversely, if you only switch the paint to water-based while running the treatment facility at full load as before, the emission reduction benefit is not converted into cost benefit. Therefore, when initiating a solvent-to-water project, the items "product price difference, treatment facility depreciation and operating cost, hazardous waste disposal fee, environmental tax, production curtailment risk" should be put into the same table for calculation: most continuous production enterprises will find that the comprehensive cost brought by water-based conversion is not as scary as the superficial paint price difference, especially in areas under emergency control during heavy pollution weather, where "no production stoppage" itself is the greatest economic benefit.

19. VOC and Occupational Health: Another Account of Workshop Exposure

VOC discussions often focus on atmospheric emissions, easily overlooking occupational exposure inside the workshop. During the application of solvent-based coatings, the concentrations of benzene series (toluene, xylene), ester and ketone solvents in the working area air are constrained by GBZ 2.1 "Occupational Exposure Limits for Hazardous Agents in the Workplace Part 1: Chemical Hazardous Agents"; enterprises must conduct regular testing and provide respiratory protection as required by occupational disease prevention. The improvement of workshop air quality from water-based conversion is immediate: the order of magnitude of organic solvent vapor concentration drops, the acute irritation and long-term exposure risks for workers decrease significantly, and the fire and explosion risks also decrease (most water-based paints are not managed as hazardous chemicals). But avoid going to the other extreme—water-based does not mean "operation without protection": the aerosol of polyisocyanate curing agent in two-component systems is sensitizing, and respiratory protection such as supplied-air masks or effective breathing protection is still required during spraying; amine neutralizers and some additives also have odor and irritation. The correct statement is: water-based conversion lowers the difficulty and cost of occupational health management by a step, but ventilation, protection, and testing systems must not be removed. Filing the GBZ 2.1 regular test report alongside the VOC emission report is the complete evidence chain for both environmental and occupational health compliance.

20. Demonstration of VOC Emission Reduction Accounting for Solvent-to-Water Conversion

A simplified accounting framework is given to help enterprises quantify the benefits of transformation. Suppose a steel structure plant uses 100 tons of paint per year: before transformation, low-solid solvent-based paint is used; based on the test report with VOC content about 550 g/L and density about 1.1 kg/L, the VOC carried by the coating itself is about 50 tons/year, plus thinner counted separately; after transformation, a water-based system is used; based on VOC about 150 g/L and density about 1.2 kg/L, the VOC carried by the coating is about 12.5 tons/year, with source reduction of about three quarters. Adding the application end: changing from airless spraying to mixed-air spraying and optimizing gun travel reduces the overspray rate, and actual fugitive emissions are further reduced. There are three key points in accounting: first, data must be taken from test reports issued according to GB/T 23986 or GB/T 23985, not promotional values; second, thinner usage must be included in the ledger, as on-site thinning of solvent-based paint is often omitted; third, the emission reduction amount is linked to environmental tax and pollutant discharge permit amount, and the accounting result should be aligned with the accounting method recognized by the local ecological environment department. Kexin New Materials (kexinMaterials) insists on "report data + usage ledger" dual-source accounting when assisting customers with transformation evaluation, to avoid unsubstantiated emission reduction promises that cannot be fulfilled during environmental inspections.

21. Emission Reduction Route Decision Table by Enterprise Situation

The optimal emission reduction route differs for different enterprises; match your situation in the table below:

The logic of this table is: in situations where the environment can be controlled, drying equipment is available, and production is batch-continuous, water-based conversion yields the greatest benefit; in situations where the environment is uncontrollable or appearance is ultimate, high-solid and solvent-free routes are more stable. Choosing the wrong emission reduction route costs more than not reducing emissions—a common lesson is forcibly pushing water-based outdoors in winter causing rework, which instead consumes an extra coat of coating and energy.

Two additional execution details. First, route switching should have a pilot period: select one production line or one component category for a three-month trial, using the same testing method to compare the product VOC ledger, exhaust monitoring data, and first-pass yield before and after transformation, use data to convince management and the environmental department, then roll out comprehensively. Second, management during the mixed-line transition period is most prone to accidents: when water-based and solvent-based are on the same line, thinners, cleaners, and waste paint buckets must be managed by zone and color coding, to prevent mistakenly using solvent to thin water-based paint causing breaking and scrapping, and to prevent water from mixing into solvent-based systems; the employee training and signage investment during the transition period are small but directly determine the success of the switch. Experience shows that enterprises that do solid pilot data and zonal management can control the scrap loss of solvent-to-water switching within an acceptable range, and can also produce a complete before-and-after comparison evidence chain during environmental inspections, holding the initiative in their own hands.

FAQ

Q: Is water-based coating zero VOC?

A:

No. Water-based paint still contains organic volatiles such as coalescents and co-solvents; VOC measured by GB/T 23986 is typically tens to hundreds of g/L. Truly "zero VOC" is extremely rare; rely on third-party test reports and beware of marketing jargon.

Q: Why does the same paint show different VOC under different standards?

A:

Because the VOC definition, exempt list, and boiling point criteria differ (e.g., GB/T 23986 vs ASTM D2369, EU 2004/42/EC have different scopes). Before comparison, the testing method must be aligned; the agreement should state "measured according to GB/T 23986".

Q: Is solvent-based coating VOC always higher than water-based?

A:

Not necessarily. Low-solid solvent-based VOC is often 500–800 g/L, significantly higher than water-based; but solvent-free/high-solid solvent-based can be ≤ 60–500 g/L, close to or even lower than high-end water-based. Decisions should look at specific products and reports, not the "water/oil" label.

Q: Is lower VOC coating worse in performance?

A:

Wrong. Performance is determined by resin and crosslink density; VOC only reflects solvent content. Low-VOC high-solid or water-based crosslinking systems can achieve high performance. It is scientific to review "VOC compliance" and "performance compliance" in parallel.

Q: Where does VOC in water-based paint mainly come from?

A:

Mainly from coalescents (Texanol, DPnB, etc., used to lower MFFT for particle fusion into film), co-solvents, and small amounts of amine pH adjusters. Coalescents are the main source of water-based VOC; formulation should select low-VOC high-boiling-point types and control dosage.

Q: What do GB 30981-2020 and GB 24409-2020 respectively regulate?

A:

GB 30981-2020 regulates limits of hazardous substances in industrial protective coatings (steel structures, containers, construction machinery, etc.); GB 24409-2020 regulates vehicle coatings (automotive OEM, refinish, parts). Both set VOC upper limits by water-based/solvent-based/solvent-free types.

Q: Is high-solid solvent-based coating worth considering?

A:

Yes. In situations with ultimate durability or appearance requirements and with explosion-proof conditions, high-solid solvent-based VOC is already pressed to 300–500 g/L with excellent performance. It is a trade-off of "compliance vs performance" with water-based; see Water-based Coating vs Solvent-based Coating Selection.

Q: Use "as-manufactured state" or "as-applied state" for VOC testing?

A:

Either is fine but must be agreed. High-solid products change VOC significantly after thinning; "as-applied state" is closer to reality. The agreement must state the sample state, otherwise the values are not comparable.

Q: What technical paths reduce VOC?

A:

Increase volume solids, water-based conversion, solvent-free/powder/UV curing, high transfer-efficiency application (HVLP/electrostatic to reduce overspray), low-toxic low-VOC thinners. The core of water-oil coexistence is "less solvent, more film former".

Q: How can enterprises avoid VOC compliance risks?

A:

Q: After switching to water-based paint, can the exhaust gas treatment facility be shut down?

A:

It cannot be generalized. It must be evaluated after measuring the spray booth exhaust gas concentration according to the pollutant discharge permit and local emission standards: in most operating conditions it can be downgraded and simplified (e.g., replacing large-airflow RTO with activated carbon), but two-component systems and the drying process still have organic matter escape, and adjustments to treatment facilities must go through the environmental impact assessment change procedure—unauthorized shutdown is not allowed.

Q: Does a water-based paint workshop still need occupational health testing?

A:

Yes. Periodically test chemical hazardous factors in the workplace air according to GBZ 2.1; after water-based conversion solvent vapor drops significantly, but two-component polyisocyanate curing agent aerosol is sensitizing and amine additives are irritating, so respiratory protection is still required during spraying, and ventilation and testing systems must not be withdrawn.
